Galvanized Steel Material Outdoor Telecom Cabinet 24U Single Wall With Fan Cooling

Product Categories

Tianjin Estel Electronic Science and Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Galvanized Steel Material Outdoor Telecom Cabinet 24U Single Wall With Fan Cooling
Brand: ESTEL
Price: 358 USD

Brand Name : ESTEL

Model Number : ET7077150-EQ

Certification : ISO9001

Place of Origin : China

MOQ : 1PC

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 2000PCS per month

Delivery Time : 20 woking days

Packaging Details : Wooden Case

Door : One front door

Equipment Installation : Standard 19" rack

Protection : IP55

Inner Space : 24U

Coating : Anti corrosion powder coating

Cooling : Fan

Feature : Removable top

Price : 358-2143 usd

cabinet : Outdoor telecom cabinet

Contact Now

24U Single Wall Outdoor Telecom Cabinet With Fan Cooling Galvanized Steel Material

1.Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	(1)External Dimension W×D×H 700×770×1500mm (including plinth) (2) One compartment, all is 19" installation rail (3) With one front door, and anti-theft four point lock for outdoor cabinet (support padlock) (4) Material: single wall, 1.5mm thick galvanized steel; without heat insulation. (5) Including removable top (6)Powder-Coat Paint: outdoor polyester light gray RAL 7035
2	Fan	1	PC	DC48V, 50W, temperature adjustable, installed on cabinet top.
3	Smoke Sensor	1	PC	DC48V
4	Door Sensor			DC48V
5	LED Lamp Switch	1	PC	Used for controlling LED lamp on/off
6	LED Lamp	1	PC	DC48V
7	Package	1	Set	Wooden Case

2. Feature

Waterproof, moistureproof, dustproof, and corrosion resistance
Security design: embedded door, embedded hinges, 3-point security lock
We can accept customized according to customers, such as double sheet, air conditioner or heat exchanger cooling etc.

3. Application fields

Communication,radio and television,electricity and others

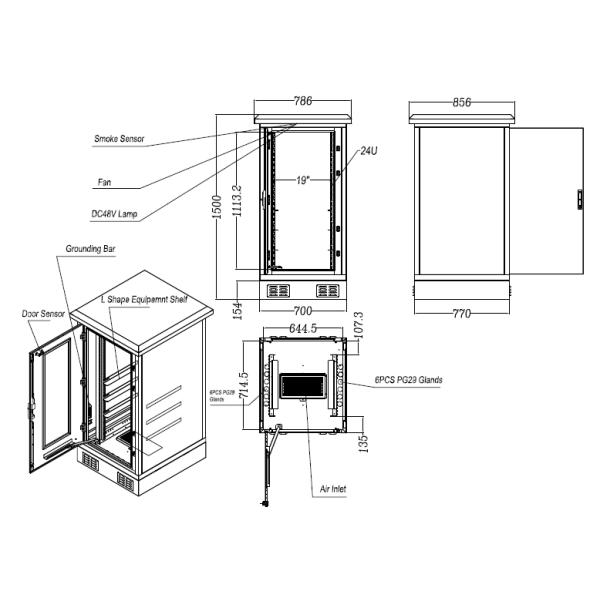

4. 2D Drawing

5. 3D Drawing

Galvanized Steel Material Outdoor Telecom Cabinet 24U Single Wall With Fan Cooling

6. Our other cabinets
